4 December 2015

Electron trapped in InGaAs quantum dots on GaAs reveals qubit information loss mechanisms

Physicists at the Technical University of Munich (TUM) in Germany and the Los Alamos National Laboratory and Stanford University in the USA have tracked down semiconductor nanostructure mechanisms that can result in the loss of stored information – and halted the ‘amnesia’ using an external magnetic field (‘Three-stage decoherence dynamics of an electron spin qubit in an optically active quantum dot’, Alexander Bechtold et al; Nature Physics, 11, 1005-1008 (2015)). The new nanostructures comprise common semiconductor materials compatible with standard manufacturing processes.

Quantum bits (qubits) are the basic logical elements of quantum information processing (QIP) that may represent the future of computer technology. Since they process problems in a quantum-mechanical manner, such quantum computers might be able to solve complex problems much more quickly than currently possible.

In principle, there are various possibilities for implementing qubits: photons are an option equally as viable as confined ions or atoms whose states can be altered in a targeted manner using lasers. The key questions regarding their potential use as memory units are how long information can be stored in the system and which mechanisms might lead to a loss of information.

A team of physicists headed by Alexander Bechtold and professor Jonathan Finley at the Walter Schottky Institute of the Technical University of Munich and the Cluster of Excellence Nanosystems Initiative Munich (NIM) have now presented a system comprising a single electron trapped in a semiconductor nanostructure, where the electron’s spin serves as the information carrier.

The researchers were able to precisely demonstrate the existence of different data loss mechanisms and also showed that stored information can nonetheless be retained using an external magnetic field.

Electrons trapped in a quantum dot

To form the nanostructure, the TUM physicists evaporated indium gallium arsenide (InGaAs) onto a gallium arsenide (GaAs) substrate. Due to the different lattice spacing of the two semiconductor materials, strain is produced at the interface between the crystal grids. The system thus forms nanometer-scale ‘hills’ (quantum dots).

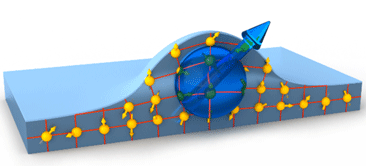

An electron in a quantum dot, influenced by the nuclear spins of its environment.

When the quantum dots are cooled down to liquid helium temperatures and optically excited, a single electron can be trapped in each of the quantum dots. The spin states of the electrons can then be used as information stores. Laser pulses can read and alter the states optically from outside. This makes the system ideal as a building block for future quantum computers.

Spin up or spin down correspond to the standard logical information units 0 and 1. But, on top of this come additional intermediate states of quantum mechanical up and down superpositions.

Hitherto unknown memory loss mechanisms

However, there is one problem. “We found out that the strain in the semiconductor material leads to a new and until recently unknown mechanism that results in the loss of quantum information,” says Bechtold. The strain creates tiny electric fields in the semiconductor that influence the nuclear spin orientation of the atomic nuclei.

“It’s a kind of piezoelectric effect,” says Bechthold. “It results in uncontrolled fluctuations in the nuclear spins.” These can, in turn, modify the spin of the electrons, i.e. the stored information. The information is lost within a few hundred nanoseconds.

In addition, Bechthold’s team was able to provide concrete evidence for further information loss mechanisms, for example that electron spins are generally influenced by the spins of the surrounding 100,000 atomic nuclei.

Preventing quantum mechanical amnesia

“However, both loss channels can be switched off when a magnetic field of around 1.5 tesla is applied,” says Bechtold. “This corresponds to the magnetic field strength of a strong permanent magnet. It stabilizes the nuclear spins and the encoded information remains intact,” he adds.

“Overall, the system is extremely promising,” according to Jonathan Finley, head of the research group. “The semiconductor quantum dots have the advantage that they harmonize perfectly with existing computer technology since they are made of similar semiconductor material.” They could even be equipped with electrical contacts, allowing them to be controlled not only optically using a laser but also using voltage pulses.

The research was funded by the European Union (S3 Nano and BaCaTeC), the US Department of Energy, the US Army Research Office (ARO), the German Research Foundation DFG (Cluster of Excellence Nanosystems Munich (NIM) and SFB 631), the Alexander von Humboldt Foundation as well as the TUM Institute for Advanced Study (Focus Group Nanophotonics and Quantum Optics).

Tags: Spintronics

Visit: www.nature.com/nphys/journal/vaop/ncurrent/full/nphys3470.html

Visit: www.wsi.tum.de
