11 November 2016

Trace amounts of transition-metal impurities in GaN kill LED efficiency

Using first-principles calculations, University of California, Santa Barbara (UCSB) has demonstrated the mechanism by which transition-metal impurities - iron in particular - can act as non-radiative recombination centers in nitride semiconductors (Wickramaratne et al, 'Iron as a source of efficient Shockley-Read-Hall recombination in GaN', Appl. Phys. Lett. 109, 162107 (2016)). The work, which was funded by the US Department of Energy (DOE), Office of Science, and by Marie Sklodowska-Curie Action of the European Union (EU), highlights that such impurities can have a detrimental impact on the efficiency of LEDs based on gallium nitride (GaN) or indium gallium nitride (InGaN).

For LEDs, high-purity material is essential to lighting technology, such as residential and commercial solid-state lighting, adaptive lighting for automobiles, and displays for mobile devices. Imperfections at the atomic scale can limit the performance of LEDs through Shockley-Read-Hall recombination. An LED's operation relies on the radiative recombination of electrons and holes, resulting in the emission of photons. Defects or impurities can act as a source of non-radiative recombination and prevent the emission of light, lowering LED efficiency.

UCSB, in collaboration with Rutgers University, the University of Vienna, the KTH Royal Institute of Technology in Sweden and the Center for Physical Sciences and Technology in Lithuania, has identified that iron, even at concentrations less than parts-per-million, can be highly detrimental.

Transition-metal impurities such as iron have long been known to act as 'killer centers', severely impacting devices based on traditional semiconductors such as silicon and gallium arsenide (GaAs). It is therefore surprising that little attention has been devoted to understanding the role of transition metals in recombination dynamics in GaN.

"A naïve application of Shockley-Read-Hall theory, based on an inspection of defect levels within the bandgap, would lead one to conclude that iron in GaN would be harmless," says lead author Dr Darshana Wickramaratne. "However, our work shows that excited states of the impurity play a key role in turning it into a killer center."

The UCSB researchers identified a recombination pathway by which iron can lead to severe efficiency loss. Sophisticated first-principles calculations were essential to identify and understand the role of the excited states in the recombination process.

"Taking these excited states into account completely changes the picture," emphasizes team member Dr Audrius Alkauskas. "We strongly suspect that such excited states play a key role in other recombination phenomena, opening up new avenues for research."

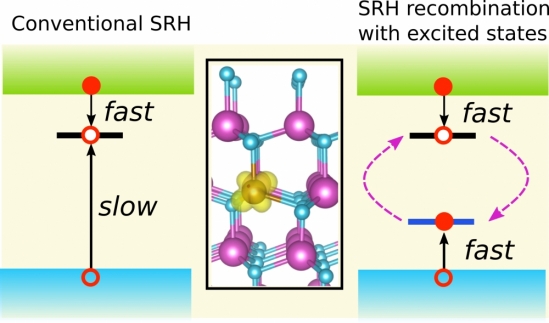

Picture: Shockley-Read-Hall (SRH) recombination due to iron in GaN. Iron is a deep acceptor with a defect level (black line) close to the GaN conduction band (green). The charge density corresponding to this localized level is illustrated in the middle of the figure. Conventional SRH recombination (left) proceeds via electron capture from the conduction band into the defect level, but the overall rate would be limited by slow capture of holes because the defect level is far from the valence band (blue). The presence of excited states enhances the hole capture rate (right) such that the overall SRH recombination process becomes very efficient.

The results highlight that strict control over growth and processing is required to prevent the unintentional introduction of transition-metal impurities. Sources of iron contamination include the stainless-steel reactors that are used in some growth techniques for nitride semiconductors.

"Increasing the efficiency of light emission is a key goal for the solid-state lighting industry," says UCSB Materials professor Chris Van de Walle, who led the research team. "Our work focuses attention on the detrimental impact of transition metals and the importance of suppressing their incorporation."

Tags: LED droop GaN InGaN

Visit: http://scitation.aip.org/content/aip/journal/apl/109/16/10.1063/1.4964831

Visit: www.mrl.ucsb.edu/~vandewalle
