Silanna launches its first 100W multi-port fast charger reference design

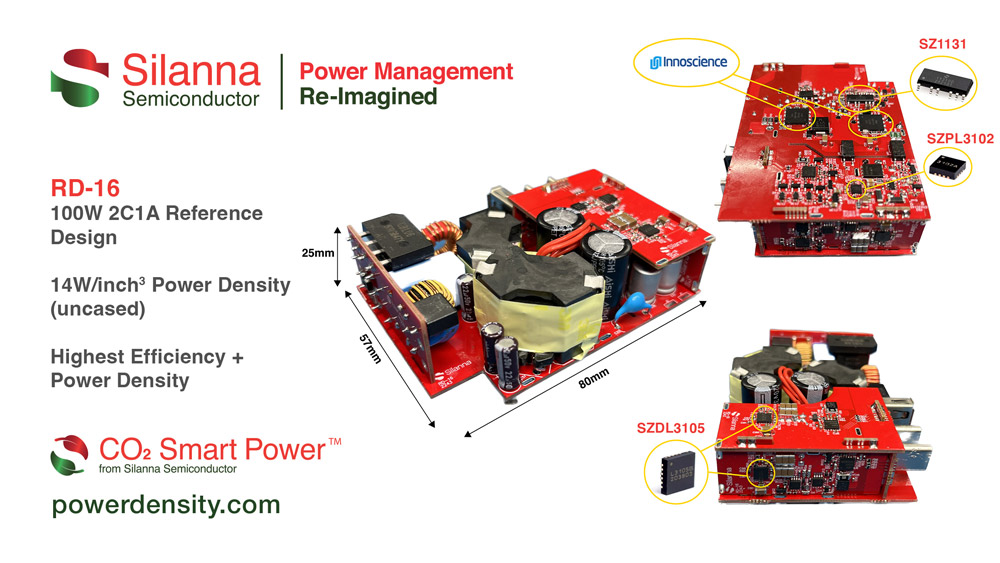

Silanna Semiconductor of San Diego, CA, USA, which makes AC/DC and DC/DC power converter ICs, has expanded its family of fast charger reference designs with its first 100W multi-port offering. Built around its CO2 Smart Power AC/DC controllers and high-frequency DC/DC converters, the RD-16 integrates a front-end PFC converter stage and provides a high-power-density, ultra-efficient, production-ready solution for multi-port 100W USB-PD applications delivering currents up to 5A.

Silanna says that the RD-16 is a gallium nitride (GaN)-based solution — using an Innoscience GaN power transistor — that can simplify and speed charger development by providing everything an engineer needs to rapidly prototype and test a fully functional 100W 2C1A multi-port unit. The design is based on the AnyPort architecture, which offers the flexibility to complete a charger design for a given power level prior to specifying and configuring the specific number and type of output ports. By allowing a single base charger design to be deployed across a variety of end products with different output configurations, AnyPort can significantly reduce the complexity of fast chargers and adapters with multiple Type-C and/or Type-A output ports.

The RD-16 brings together Silanna’s newest fully integrated AC/DC active clamp flyback (ACF) controller (the SZ1131) and its 100W SZDL3105 and 65W SZPL3102S high-voltage, high-efficiency integrated buck converters, with maximum output currents of 5A and 3.25A, respectively (in 4mm x 4mm and 3mm x 3mm QFN packages, respectively). End-to-end peak efficiency exceeds 92% and is relatively flat across the universal input voltage range (90–265Vac). Because the reference design exceeds conducted and radiated EMI requirements, it eliminates the need for pre-production validation and certification, speeding up the production cycle.

“Our aim is to provide designers with all the tools and support they need to rapidly develop high-efficiency, small-form-factor, low-component-count fast chargers,” says Ahsan Zaman, director of product marketing. “By combining our CO2 Smart Power family of advanced AC/DC and DC/DC technologies with GaN power switching and our innovative and flexible AnyPort architecture, the RD-16 offers the fastest possible route from prototyping to full production for 100W fast chargers with any number or type of output ports.”

The RD-16 is the latest addition to Silanna’s family of production-ready reference designs that provide everything needed to develop high-density chargers with low operational and no-load/stand-by power consumption and minimum component count, bill-of-materials (BOM) cost and size. This family includes all-silicon 33W and 45W solutions and silicon- and GaN-based single- and multiple-output 65W USB-PD reference designs. Full availability of PCB Gerber and production files further reduces the time from prototyping to full production.
